Product Details:
Payment & Shipping Terms:
|
| Product Name: | 50ton Heavy Duty Lifting Tools Manual Chain Block In Stock | Rated Load: | 50ton |
|---|---|---|---|
| Lifting Height: | 3m Or At Your Request | Chains: | G80 Chain, Black, Galvanized Or Stainless Steel |
| Package: | Standard Export Plywood Case | Warranty: | 1 Year |
| Highlight: | 50t Manual Chain Block,G80 Manual Chain Block,EN 818 Manual Chain Block |
||

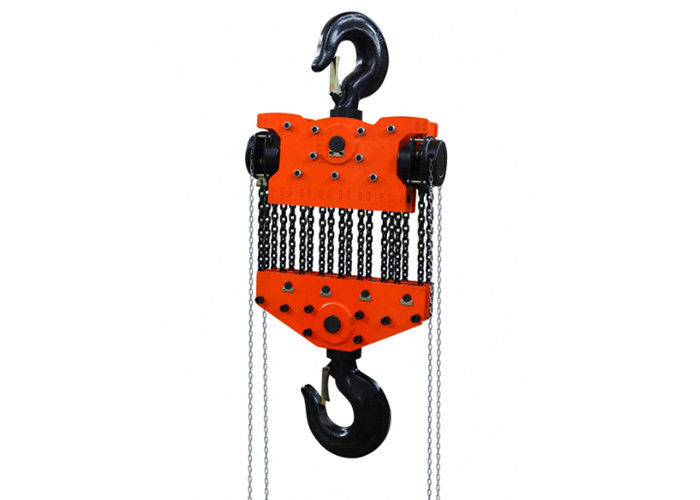

50ton Heavy Duty Lifting Tools Manual Chain Block in Stock
Product Application:
Manual chain block is a widely used manual hoisting machine, which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting goods, loading and unloading in the warehouse, especially suitable for using in the open air and the place without power.
Advantages:
1: Chain hoist Capacity range from 0.5ton to 50 ton.
2: Hoist has overload protection system.
3: Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance
(comply with EN 818, safety factor 4).
4: Suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety
latches, fitting groove and inspection points.
5: Ergonomic handle design so that the hoist is easy to operate.
6: Heavy duty guide rollers for avoiding slippage of load chain.
7: Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
Technical Information:
| Model | C-50000 | C-60000 | C-100000 |
| Capacity(kg) | 50000 | 60000 | 100000 |
| Standard lift(m) | 3 | 3 | 3 |
| Strands of load chain | 12 | 14 | 32 |
| Effort required to lift rated load(N) | 390 | 400 | 400 |
| Running test load(KN) | 75000 | 90000 | 150000 |
| Diameter of load chain(mm) | 11.2x31 | 11.2x31 | 11.2x31 |
| Size of hand chain(mm) | 5x25 | 5x25 | 5x25 |
| Net weight(kg) | 425 | 525 | 1541 |
| Gross weight(kg) | 465 | 550 | 1650 |
| Extra weight per meter of extra lift(kg) | 32 | 37 | 88.2 |
1: Capacity?
2: Lifting height?
3: Quantity?
