Product Details:
Payment & Shipping Terms:
|
| Capacity: | 0.5t-35t | Standard Lifting Height: | 3m |
|---|---|---|---|
| Load Chain: | 1,2,3 | Voltage: | 220-440V |
| Color: | Customized | Model: | Chain Hoist |
| Highlight: | stainless steel chain hoist,high speed chain hoist |
||

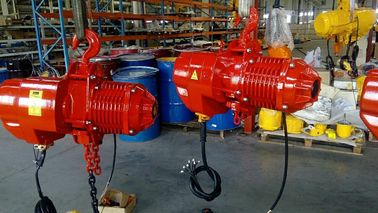

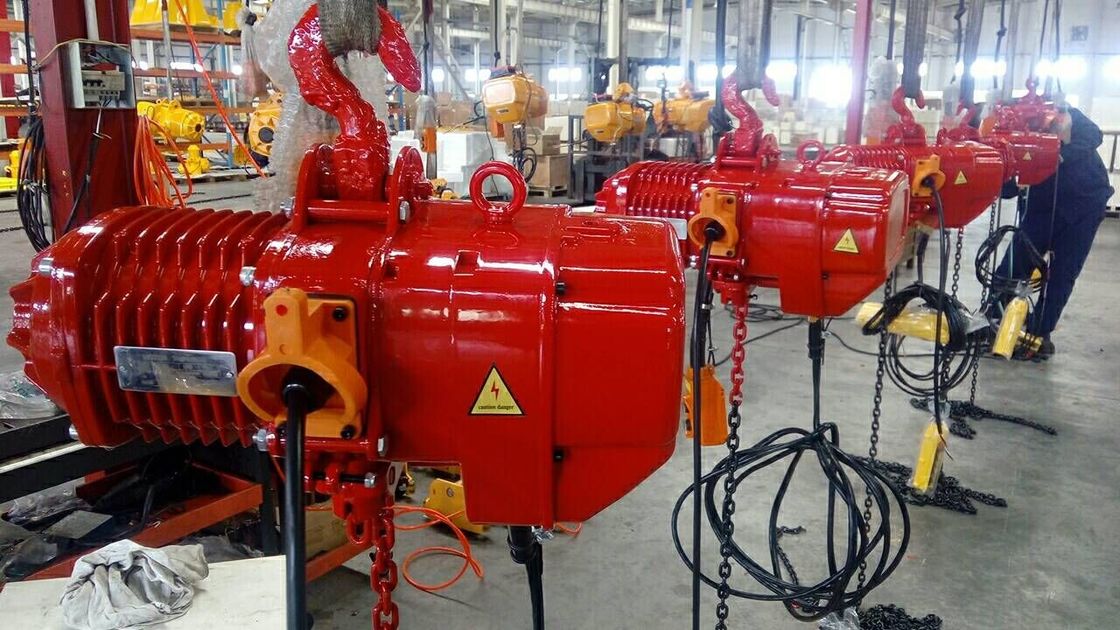

Electric Chain Hoist With and Without Trolley 3m Single Speed and double speed
| Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||
| 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase | 0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 | ||
| 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 | ||
| 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 | ||
| 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 | ||
| 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 | ||
| 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
