Product Details:
Payment & Shipping Terms:
|
| Model: | Standard Headroom Type | Capacity: | 20 Ton |
|---|---|---|---|
| Voltage: | 220 V - 440 V | Color: | As Per Request |
| Load Chain: | 8 | Chain Dia.: | 11.2 Mm |
| Highlight: | electric hoist trolley with Double brake,motorized chain hoist,Standard Headroom Electric Chain Hoist |
||

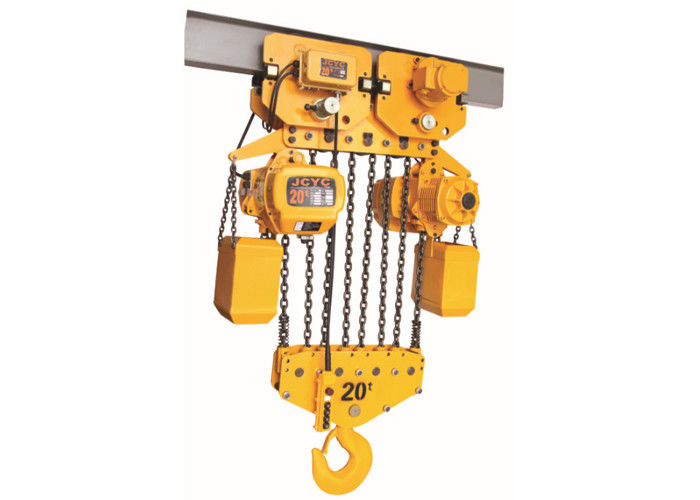

Standard Headroom Electric Chain Hoist With Electric Trolley 20 ton
Brief Introduction:
Electric chain hoist has a small,compact,light weight and cool design,use single/triple phase power supply,quickly and easily operates,easy to install,security,reliability and widely using. Ideal lifting tools for DIY, warehouses, garages, farms, hunting, engine repair shops, machine shops, restaurants, AD boards hold, show and home improvement etc, also perfect for loading and unloading heavy items from trucks and trailers.
Main advantages:
Structure Features
The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength. Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system. The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.
Lifting motor
Using high performance lifting motor which can last to work 30 minutes with full loading, and has Grade B insulation.
Lifting chain
The chain of the low carbon steel alloy makes the chain more toughness, strong and wear-resisting, ensuring the safety during work.
Lifting chain hardened surface can prevent the damage of the core materials and products to soften, thus make lifting chain keep for a long time high performance.The chain can be also extended according to the request of customers' order, and allows you to use more conveniently.
The chain is equipped with chain bag which makes the electric hoist looks clean, tidy and beautiful. the chain bag contains antirust oil, so the chain is not easy to rust , so as to extend the service life of the electric hoist.
Double brake system
Two sets of brake systems, not only reduce the brake failure possibility, but also increase its safety and benefit for heat radiation. Variable speed toothThe standard chain electric hoist mainly use the reliable helical gear, it can prolong service lifting through reducing the meshing impact and vibration. Special design of gear enhance the durability of gear, And gear is made of alloy steel, through professional fine heat treatment obtain the biggest strength.
Control handle with low voltage
The standard low-voltage on chain hoist handle is 24v-36v. Low voltage can effectively protect the operator to prevent a shock damage.(24V-36V is compulsive National standard.
| Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||
| 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase | 0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 | ||
| 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 | ||
| 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 | ||
| 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 | ||
| 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 | ||
| 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
