Product Details:
Payment & Shipping Terms:
|
| Material: | Stamped Steel | Product Name: | Lever Chain Hoist, Lever Chain Block |
|---|---|---|---|
| Color: | Orange Or Customized Color | Capacity: | 0.75-9t |
| Test Load: | 1.5:1 | Handle: | Ribbed Lever Handle |
| Warranty: | 12 Months | ||
| Highlight: | steel lifting clamps,horizontal lifting clamp |
||
Product Description:
Durable 0.75t-6t 1.5m-9m Lever Chain Block with CE Certificate
Standard Features:
Meets all pertinent world standards
All steel construction for external impact resistance
High-strength, cold-formed, stamped steel construction makes it lighter in weight and impact resistant for longer life
360° degree handle rotation with short stroke to ratchet loads
Durable baked enamel paint protection
Reliable non-asbestos disc brake
Improved Features:
Ribbed lever handle
Easy remove top hook
Minimal effort in a compact design
Chain guides provide smooth chain operation
Single-hand free chaining is simple and convenient, allowing smooth, trouble-free operation in the vertical or horizontal position
Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings
Every lever hoist is operationally tested to 150% of the rated capacity and is issued with an individual test certificate
Optional Features:
Caged roller bearings on load sprocket
Cr plated side plates
Galv. load chain
Overload protection system
Parameter:
| Model: | VA0.75 | VA1.5 | VA3 | VA6 |
| Capacity(t): | 0.75 | 1.5 | 3 | 6 |
| Lifting Height(m): | 1.5 | 1.5 | 1.5 | 1.5 |
| Effort Required to Lift Rated Load(N) | 140 | 240 | 320 | 340 |
| Running Test Load(kN) | 11 | 22.5 | 37.5 | 75 |
| No. of Load Chain Fall Lines: | 1 | 1 | 1 | 2 |
| Dia. Of Load Chain(mm) | 6 | 8 | 10 | 10 |
| N.W(kg) | 7.7 | 11.8 | 21 | 32 |

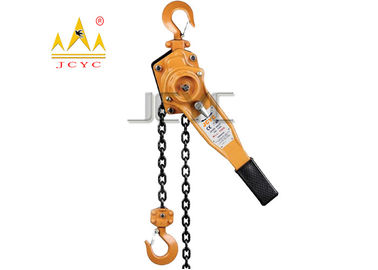

Photo:
Warm Note:
International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road. OEM, ODM, sample, trial and mixed orders are all acceptable.
