0.5t to 10t Red Movable Plain Geared Trolley Movable Push Beam Trolley
Product Description:
Movable Plain Geared Trolley, Movable Push Beam Trolley
Features and advantages:
1. Adjustable to any beam width just simply by adjusting the number of collars.
2. The wheels can fit any shape of beam.
3. High grade sealed ball bearings.
4. With anti-drop plates.
5. The standard operation length of gear trolley is 3m, others are available upon on request.
6. HS Code: 25100000
7. Transport Package: Standard Export Package
8. One year warranty.
9. The trolley is mounted on a monorail and permits horizontal travel by pulling manually on the load.
10. Combined with a hoist or other lifting machine, it can be widely used in places such as factories, mines, docks and storehouses for equipment installation or loads transporting.

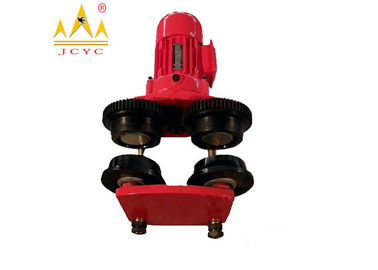

Photo:
Parameter:
| Model | HP05 | HP1 | HP2 | HP3 | HP5 | HP10 | |
| Capacity | kg | 500 | 1,000 | 2,000 | 3,000 | 5,000 | 10,000 |
| Test Load | kg | 750 | 1,500 | 3,000 | 4,500 | 7,500 | 15,000 |
| Beam Width | mm | 50-203 | 64-203 | 88-203 | 100-203 | 114-203 | 125-203 |
| N.W | kg | 6.1 | 9.8 | 16.2 | 26.1 | 40 | 80 |
| G.W | kg | 6.62 | 10.4 | 17 | 27.1 | 41.5 | 92 |
| Dimensions(mm) | A | 216 | 252 | 292 | 350 | 404 | 458 |
| B | 193 | 235 | 283 | 329 | 385 | 400 | |
| C | 146 | 170 | 202 | 235 | 255 | 324 | |
| D | 30 | 30 | 271 | 42 | 50 | 87 | |
| E | 22 | 45 | 59 | 73 | 88 | 115 | |
| F | 279 | 280 | 294 | 306 | 342 | 342 | |
| G | 26 | 34 | 28 | 32 | 39 | 50 | |
| H | 203 | 203 | 203 | 203 | 203 | 203 | |
Warm Note:
OEM, ODM, sample, trial and mixed orders are all ok, welcomes testing our quality and service.
