Product Details:
Payment & Shipping Terms:
|
| Model: | JG | Application: | Lifting Crane Hoists |
|---|---|---|---|
| Color: | Yellow Or Alternative | Material: | High Strength Steel |
| Max. Capacity: | 10,000kg | Min. Capacity: | 1,000kg |
| Highlight: | horizontal plate clamp,steel lifting clamps |
||
1. Product Profile:
High Quality JG Beam Lifting Crane Hoisting, Beam Clamp

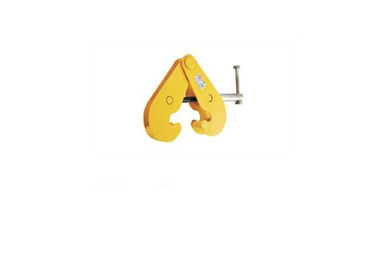

2. Photo for Reference:
3. Features and Advantages:
3.1. Easy and simple mounting.
3.2. Special clamp jaw design, applies loads away from flange edge.
3.3. Fits wide range of beams and flange widths low headroom design.
3.4. Heavy duty construction.
3.5. High quality and wide adaptation.
3.6. Excellent performance.
3.7. 1 year warranty
3.8. Sample, OEM and ODM orders are all ok.
4. Parameter:
| Model | Capacity(kg) | Adjustable Beam Width | A | B | C | D | E | F | G | H | Weight(kg) | ||
| Max. | Min. | Max. | Min. | Max. | |||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| SYJG-1 | 1,000 | 75-230 | 278 | 180 | 370 | 62 | 5 | 230 | 100 | 160 | 30 | 25 | 4 |
| SYJG-2 | 2,000 | 75-230 | 278 | 180 | 370 | 67 | 6 | 230 | 100 | 160 | 35 | 28 | 4.4 |
| SYJG-3 | 3,000 | 80-320 | 356 | 230 | 480 | 100 | 8 | 260 | 125 | 210 | 45 | 32 | 8.6 |
| SYJG-5 | 5,000 | 80-320 | 356 | 230 | 480 | 110 | 10 | 260 | 125 | 210 | 50 | 38 | 10.7 |
| SYJG-10 | 10,000 | 80-320 | 356 | 255 | 490 | 115 | 12 | 270 | 170 | 240 | 65 | 43 | 14.5 |
