Product Details:
Payment & Shipping Terms:
|
| Standard: | GB/T 20652 | Legs: | Three Or Four Legs |
|---|---|---|---|
| Factor: | 4:1 Safety Factor | Usage: | Can Be Used As Four Bundles |
| Type: | Chain Slings With Three Or Four Legs | MOQ: | 300 Sets |
| Highlight: | horizontal plate clamp,steel lifting clamps |
||
1. Product Profile:
Three or Four Legs complete sets of Chain Slings
2. Features and Advantages:
2.1.Standard: GB/T 20652-2006
2.2. Can be used as single bundle or double bundles.
2.3. Put the hook into the chain when using it
2.4. WLL/T will be reduced by 20=% during using period
2.5. Safety factor: 4:1
2.6. High quality and wide adaptation.
2.7. Excellent performance and safety.
2.8. 1 year warranty
3. Parameter:
| Model | Chain Dia.(mm) | WLL(t) | Main Link(mm) | Chain Weight(kg/m) | |
| a≤45° | 45°＜a≤60° | A*B*d | |||
| SY-LSJ3-6 | 6 | 2.2 | 1.5 | 20*140*70 | 0.79 |
| SY-LSK3-8 | 8 | 4.1 | 3 | 22*170*90 | 1.38 |
| SY-LSJ3-10 | 10 | 6.4 | 4.5 | 25*178*90 | 2.2 |
| SY-LSJ3-13 | 13 | 11 | 7.7 | 32*230*120 | 3.8 |
| SY-LSJ3-16 | 16 | 16.3 | 11.7 | 38*267*135 | 5.63 |
4. Company Message:
OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.

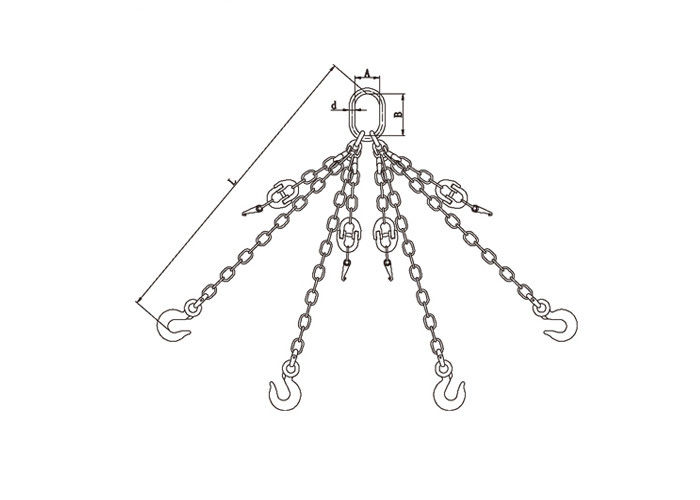

5. Photo for Reference:
