Product Details:
Payment & Shipping Terms:
|
| Product: | Electric Suspended Platform | Max. Cap.: | 1000 Kg |
|---|---|---|---|
| Min Cap.: | 250 Kg | Standard Lifting Height: | 100 M |
| Hoist Model: | LTD | Lifting Speed: | 8 M/min - 11 M/min |
| Highlight: | horizontal lifting clamp,steel lifting clamps |
||

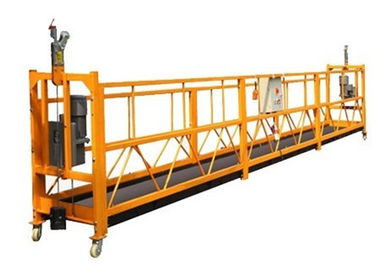

Electric Suspended Platform 630 kg 800 kg 1000 kg For Tall Buildings
Application:
Well-designed suspended platforms are used in a wide range of applications such as:
* Repair and maintenance of building.
* Installation of billboards
* Cleaning and painting of ships
* Welding on high-rise buildings
It is important to use the bestquality raw material to manufacture suspended access equipment so that the highest safety is provided to people.
| Model | ZLP 1000 | ZLP 800 | ZLP 800A | ZLP 630 | ZLP 500 | ZLP 250 |
| Rated load (Kg) |
1000 | 800 | 800 | 630 | 500 | 250 |
| Lifting speed (m/min) | 8-9 | 8-9 | 9-11 | 9-11 | 9-11 | 9-11 |
| Rated power (Kw) |
3.0*2 | 2.2*2 | 1.8*2 | 1.5*2 | 1.1*2 | 1.1*1 |
| Hoist model | LTD100 | LTD80 | LTD80A | LTD63 | LTD50 | LTD50 |
| Safety lock type | LSF30 | LSF30 | LSF30A | LSF30 | LSF30 | LSL20 |
| Weight(Kg) | 360 | 360 | 360 | 360 | 360 | 125 |
| Platform size (L*W*H)(mm) |
(2500*3)*760*1450 | (2500*3)*760*1450 | (2500*3)*760*1420 | (2000*3)*760*1420 | (2500*2)*760*1420 |
(1200*280)*2300 |
Lifting hoist details
| Model | LTD100 | LTD80A | LTD63 | LTD50 |
| Rated lifting force(KN) | 10 | 8 | 6.3 | 5 |
| Lifting speed(m/min) | 9 | 9.3 | 9.3 | 9.3 |
| Diameter of wire rope(mm) | 8.3 | 9.1 | 8.3 | 8.3 |
| Weight(Kg) | 105 | 53 | 52 | 50 |
| size(mm) | 700*370*320 | 595*300*216 | 595*300*216 | 585*300*216 |
| Voltage(V) | ~380 | ~380 | ~380 | ~380 |
| Frequency(Hz) | 50 | 50 | 50 | 50 |
| Power(Kw) | 3 | 1.8 | 1.5 | 1.1 |
| Braking torque(N.m) | 15 | 15 | 15 | 15 |
| R.P.M (r/min) | 1420 | 1420 | 1400 | 1400 |
