Product Details:
Payment & Shipping Terms:
|
| Product: | VN Chain Block | Min. Cap.: | 0.5 Ton |
|---|---|---|---|
| Max. Cap.: | 20 Ton | Standard Lifting Height: | 2.5 M - 3m |
| Optional Parts: | Overload Protection Device | Design: | Small Size , Light Weight |
| Highlight: | horizontal lifting clamp,horizontal plate clamp |
||

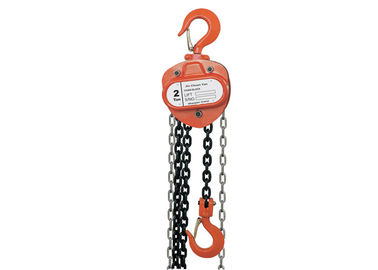

Chain Block Lifting Tools Up To 20 ton With Grade 80 High Strength Load Chain
Brief Introduction
A chain block (also known as a hand chain hoist) is a mechanism used to lift and lower heavy loads using a chain. Chain blocks contain two wheels which the chain is wound around. When the chain is pulled, it winds around the wheels and begins to lift the item that is attached to the rope or chain via a hook. Chain Blocks can also be attached to lifting slings or chain bags to lift the load more evenly.
Product Catalogue
| Model | Lifting Capacity(t) | Lifting Height(m) | Running Test(t) | No.of Load Chain | Dia.of Load Chain(mm) | Net Weight (kg) | Packing Size(L*W*H)(cm) |
| VN-0.5 | 0.5 | 2.5 | 0.625 | 1 | 6 | 11.25 | 30*20*16 |
| VN-1 | 1 | 2.5 | 1.25 | 1 | 6 | 11.5 | 24*18*14 |
| VN-1.5 | 1.5 | 2.5 | 1.875 | 1 | 8 | 17.4 | 30*20*16 |
| VN-2 | 2 | 3 | 2.5 | 2 | 8 | 22.2 | 30*20*16 |
| VN-3 | 3 | 3 | 3.75 | 2 | 8 | 27 | 34*24*16 |
| VN-5 | 5 | 3 | 6.25 | 2 | 10 | 40 | 39*30*18 |
| VN-10 | 10 | 3 | 12.5 | 4 | 10 | 72 | 55*48*25 |
| VN-20 | 20 | 3 | 25 | 8 | 10 | 176 | 84*75*29 |
