| Product: | Lever Hoist | Product: | Lever Block |
|---|---|---|---|
| Max. Cap: | 9 Ton | Min. Cap.: | 0.5 Ton |
| Standard Lift Height: | 1.5 M | Chain Grade: | Grade 80 |
| Highlight: | horizontal lifting clamp,steel lifting clamps |
||

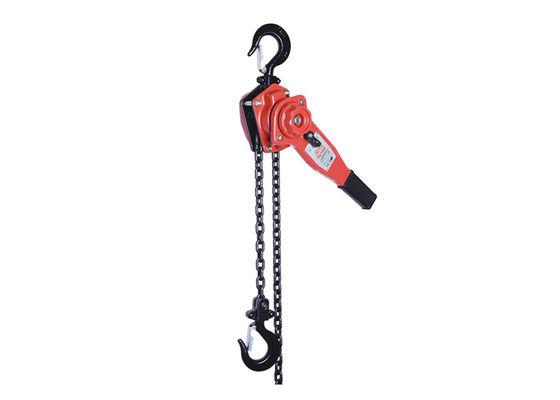

Lever Hoist / Lever Block With Double Pawl
The adoption of low-alloy structural steel plate, safe, reliable and durable.
G80 high strength load chain, high safety factor and long service life.
Steady rotation, high efficiency, mall lever force.
Products certified by CE and GS.
Double pawl keep safe and reliable
Widely use for nuclear power, thermal power transmission and transmission etc.
Optional overlaod protection
| Model | Capacity(t) | Standard lift(m) | Running test load(T) | Full load hand force(N) | No.of falls of load chain | Load chain dia.(mm) | Weight | Packing(L*W*H)(mm) |
| VJ0.5T | 0.5 | 1.5 | 0.75 | 140 | 1 | 5 | 3.5 | 335*125*90 |
| VJ0.75T | 0.75 | 1.5 | 1.125 | 140 | 1 | 6 | 7 | 370*140*170 |
| VJ1T | 1 | 1.5 | 1.5 | 140 | 1 | 6 | 7.5 | 370*140*170 |
| VJ1.5T | 1.5 | 1.5 | 2.25 | 240 | 1 | 8 | 11 | 520*140*180 |
| VJ2T | 2 | 1.5 | 3 | 240 | 1 | 8 | 11.5 | 520*140*180 |
| VJ3T | 3 | 1.5 | 4.5 | 320 | 1 | 10 | 19 | 550*160*210 |
| VJ6T | 6 | 1.5 | 7.5 | 340 | 2 | 10 | 32 | 550*160*210 |
| VJ9T | 9 | 1.5 | 11.25 | 360 | 3 | 10 | 47 | 620*485*260 |
