Product Details:
Payment & Shipping Terms:
|
| Name: | 30 T Electric Chain Hoist Type Construction Lifting With Hook | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 0.5t-35t | Color: | Alternative |
| Condition: | New | Chain: | G80 |
| Highlight: | electric hoist crane,small electric wire rope hoists |
||

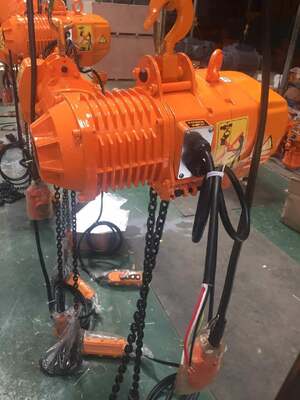

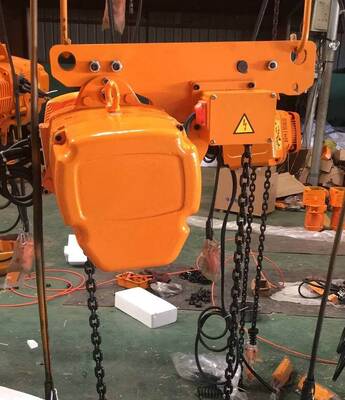

30 T Electric Chain Hoist Type Construction Lifting With Hook
SY Series Model SYA Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product technical data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | ||
| Power(kw) | R.P.M(r/min) | Power Supply | |||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 |
220-440V |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | |
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | |
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | |
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | |
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | |
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | |
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | |
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | |
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | |
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | |
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | |
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | |
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | |
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | |
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | |

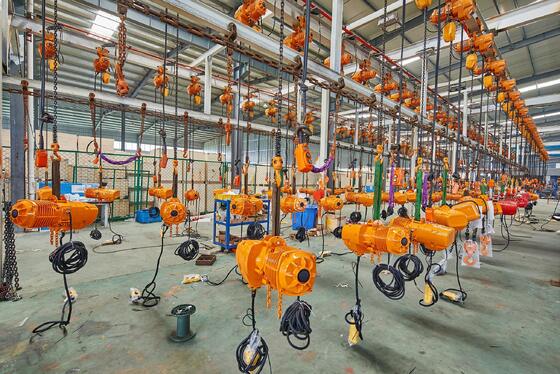

Factory show:
