Product Details:
Payment & Shipping Terms:
|
| Product: | Double Steel Plate Lifting Clamp For H-shape T-shape L-shape Steel Plate | Material: | High-quality Low-carbon Alloy Steel |
|---|---|---|---|
| Application: | H, I, T, L Shaped Steel Structures | Capacity: | 1-10 Ton |
| Open Size: | 0-120 Mm | Model: | QS |
| Highlight: | horizontal lifting clamp,steel lifting clamps |
||

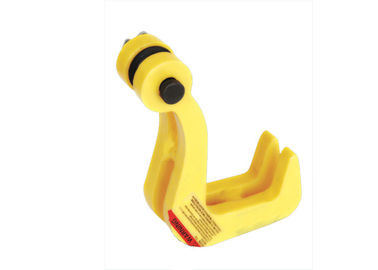

Double Steel Plate Lifting Clamp for H-shape T-shape L-shape Steel Plate Lifting Tools
Product characteristics:

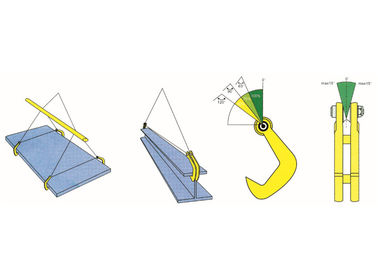

* Suitable for horizontal lifting of "H", "I", "T", "L" shaped steel structures;
* Made of high-quality low-carbon alloy steel;
* Upper roller design to avoid wire rope damage;
* It's easy for the narrow space with sharp triangle;
* One pair, pairs or group of clamp used together.
Product specification:
| Model | Capacity/pair(kg) | Test load(kg) | Opening size (mm) | Net weight(kg) |
| QS-1.0 | 1000 | 2000 | 0-40 | 2.0 |
| QS-2.0 | 2000 | 4000 | 0-50 | 3.5 |
| QS-3.2 | 3200 | 6400 | 0-60 | 6.0 |
| QS-5.0 | 5000 | 10000 | 0-70 | 14.5 |
| QS-7.0 | 7000 | 14000 | 0-90 | 22 |
| QS-10 | 10000 | 20000 | 0-120 | 32 |
