Product Details:
Payment & Shipping Terms:
|
| Product Name: | Spring Balancer | Color: | Yellow Or Alternative |
|---|---|---|---|
| Travelling Length: | 1.5 M - 2 M | Application: | Factory |
| Protect System: | Drum Lock System | Max. Capacity: | 200kg |
| Highlight: | horizontal lifting clamp,steel lifting clamps |
||

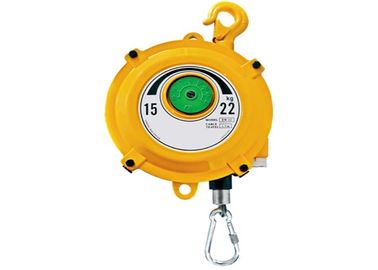

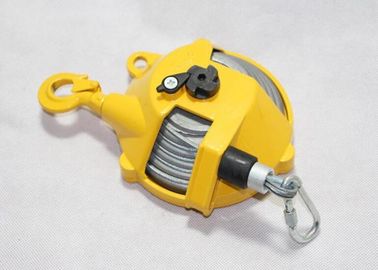

Tool Spring Balancers
Application:
Automobile Industry
Motorcycle
Shipyard
Oil Field
Machinery Manufacturing
Workshop
Suspending a tool for product assembly line
Frequent fastening screws, bolts, and nuts
Suspending a jig, tool, welding gun etc.
Advantages and Features:
Improve working efficiency and diminish worker fatigue.
Make the position of a tool stable and contribute a accurate work.
Keep a tool clean
Fall arrest devices
Secondary support hanger
Gauge
Drum lock system
Cartridge spring
Wire rope replacement
| Model | Capacity (kg) |
Stroke (m) |
Weight |
| YT3 | 1-3 kg | 1.5 | 1.7 |
| YT5 | 3-5 kg | 1.5 | 1.8 |
| YT9 | 5-9 kg | 1.5 | 3.8 |
| YT15 | 9-15 kg | 1.5 | 4.5 |
| YT22 | 15-22 kg | 1.5 | 7.5 |
| YT30 | 22-30 kg | 1.5 | 8 |
| YT40 | 30-40 kg | 1.5 | 10.2 |
| YT50 | 40-50 kg | 1.5 | 10.7 |
| YT60 | 50-60 kg | 1.5 | 11.7 |
| YT70 | 60-70 kg | 1.5 | 12.2 |
| YT 80 | 70-80 kg | 1.5 | 12.7 |
| YT100 | 80-100 kg | 1.5 | 18.5 |
| YT120 | 100-120 kg | 1.5 | 19.5 |
| YT 140 | 120-140 kg | 1.5 | 20.5 |
| YT160 | 140-160 kg | 1.5 | 22.5 |
| YT 180 | 160-180 kg | 1.5 | 24.5 |
| YT 200 | 180-200 kg | 1.5 | 26.5 |
