| Product: | End Carriage For Single Girder | Type: | Open Gear |
|---|---|---|---|
| Motor: | Three-in-one Motor | Power Supply: | 220V-440V 3Phase 50/60Hz |
| Capacity: | 1ton To 20ton | Crane Beam: | As Per Request |
| Control: | Air Operation+Ground Operation | ||
| Highlight: | Open Gear End Carriage,20t Bridge Crane End Carriage,Travelling Crane End Carriage |
||
General End Carriage Top Running for Single Girder Bridge Cranes with Open Gear
Product overview
The end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts. This kind end carraige use three-in-one famous brand motor for power supply to ensure it's smooth and stability moving above overhead crane.
Advantages
• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.
Technical parameters
| Model | Crane | Rectangular Steel tube |
Wheel Size | Motor power | S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
| GL125-15 | 1t-7.5m | 150*150*6 | W125*60 | 0.3KW*2 | 1500 | 1300 | 400 | 500 |
| GL125-20 | 1t-11.5m | 2000 | 1800 | 400 | 500 | |||
| GL125-25 | 1t-16.5m | 2500 | 2300 | 400 | 500 | |||
| GL160-15 | 2t/3t-7.5m | 150*200*8 | W160*70 | 0.4KW*2 | 1500 | 1200 | 400 | 500 |
| GL160-20 | 2t/3t-11.5m | 2000 | 1700 | 400 | 500 | |||
| GL160-25 | 2t/3t-16.5m | 2500 | 2200 | 400 | 500 | |||
| GL160-30 | 2t/3t-22.5m | 3000 | 2700 | 500 | 600 | |||
| GL160-35 | 2t/3t-28.5m | 3500 | 3200 | 600 | 700 | |||
| GL200-20 | 5t-11.5m | 150*250*8 | W200*70 | 0.4KW*2 | 2000 | 1700 | 400 | 500 |
| GL200-25 | 5t-16.5m | 2500 | 2200 | 400 | 500 | |||
| GL200-30 | 5t-22.5m | 0.75KW*2 | 3000 | 2700 | 500 | 600 | ||
| GL200-35 | 5t-28.5m | 3500 | 3200 | 600 | 700 | |||
| GL250-20 | 10t-11.5m | 200*250*8 | W250*80 | 0.75KW*2 | 2000 | 1600 | 400 | 500 |
| GL250-25A | 10t-16.5m | 2500 | 2100 | 500 | 600 | |||
| GL250-30A | 10t-22.5m | 1.1KW*2 | 3000 | 2600 | 500 | 600 | ||
| GL250-35A | 10t-28.5m | 3500 | 3100 | 700 | 800 | |||
| GL250-25B | 16t-16.5m | 200*300*8 | W250*80 | 1.1KW*2 | 2500 | 2100 | 600 | 700 |
| GL250-30B | 16t-22.5m | 3000 | 2600 | 700 | 800 | |||
| GL250-35B | 16t-28.5m | 1.5KW*2 | 3500 | 3100 | 700 | 800 | ||
| GL315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 | 3000 | 2500 | 700 | 800 |
| GL315-35 | 20t-22.5m | 3500 | 3000 | 700 | 800 |

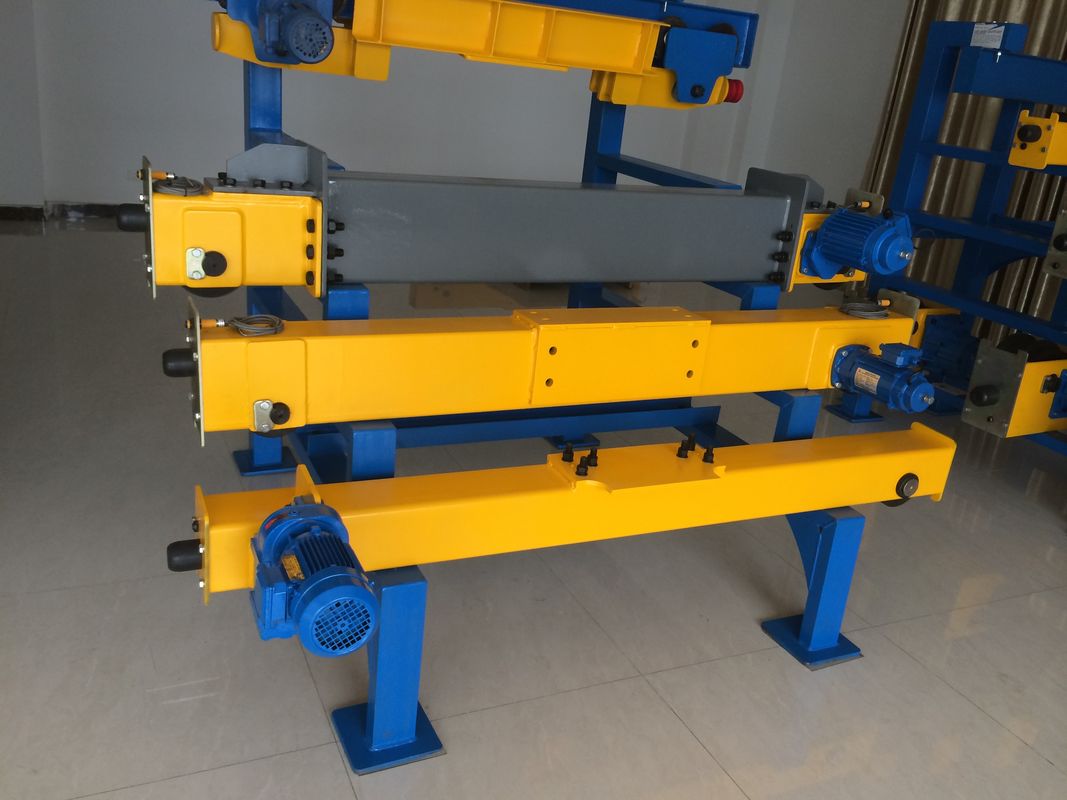

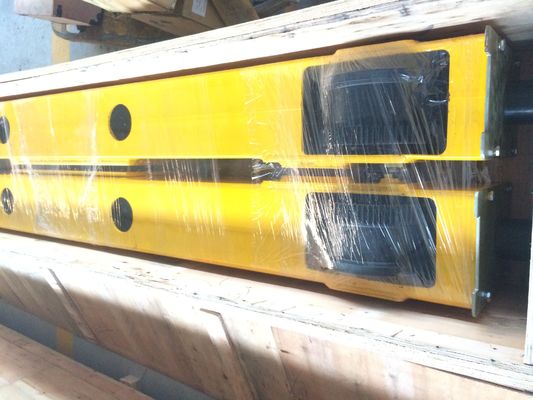

Product show:
