Product Details:
Payment & Shipping Terms:
|
| Product Name: | Travelling Type Motorized Electric Rope Hoist | Type: | Square Drum |
|---|---|---|---|
| Reducer: | Planetary Speed-Down Drive | Specification: | 1t To 20ton |
| Lifting Height: | 6m, 9m, 12m, 18m, 30m Etc. | Power Supply: | 380V 3P 50/60HZ |
| Rope Reeving: | 2/1, 4/1 | ||
| Highlight: | Motorized Electric Rope Hoist,20t Electric Rope Hoist,6m Lifting Motorized Rope Hoist |
||

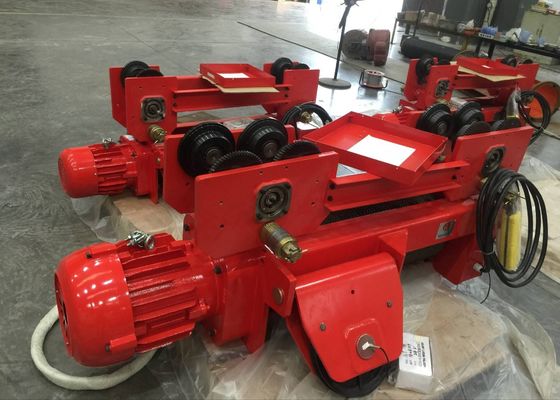

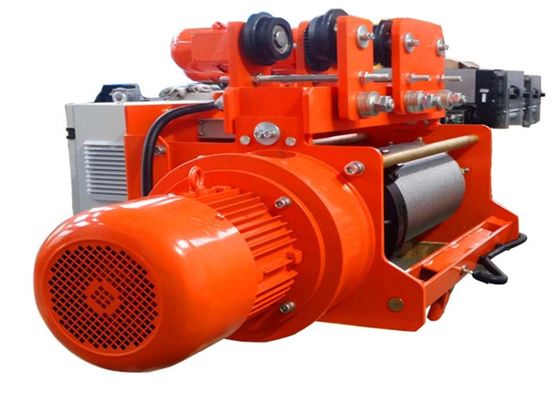

Travelling Type Motorized Electric Rope Hoist
Product Introduction
This kind of wire rope hoist has newest designing with quadrate outline, modularized construction, good unitized capacity. The fundamental mode change combine is very convenient and multiform. The special drive composition method is very stationary which save the usual long transmission shaft. The reducer use panetary speed-down drive which have high effective, low yawp long using life. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable. With the advance guide rope technology from overseas, unit is very reliable and safe. High precision and super mechanical spin limiter high quality control electric compnent with low malfunction. The products are complied with the up to date international standard.
Main Features:
1) Brake: adopting D.C. normal close brake, without asbestos. Once the motor stop, the brake can hold the load safely and timely.
2) Electronic Limit Load Device: This hoist is equipped with electronic limit load device, which prevent chain being over tight.
3) Friction Clutch: which can make the motor idle running to avoid damage under overload and over tight revolving.
4) Heat Protection Device: The motor is equipped with heat protection device, which preventing the motor to be damaged under overheat.
5) Hooks: Top and bottom hooks are made of high tensile alloy steel with special heat treatment. It prevents the hook from breaking and being deformed gradually under a sudden extra-load.
6) Load Chain: Load chain is carbonized with good wear property and long using life.
7) Chain Container: Chain container serves as a storage bag, keeping the load chain clear of dirt and dust, and without chuck while falling down freely.
8) Push Button Control: Push button control fits operator's hand operation. Impact and chemical atmosphere resistant.
9) Safety Latches: Top and bottom hooks are fitted with safety latches as standard.
| Model | Capacity (t) | Lifting motor (kW) | Lifting speed (m/min) |
Travel motor (kW) | Travel speed (m/min) |
H Lifting Height | ||||||
| 6m | 9m | 12m | 18m | 24m | 30m | |||||||
| SHS-A 1t | 1 | 1.5 | 8.4 | 0.4 0.4/0.13 | 20 | L0 | 384 | 481 | 578 | 772 | 966 | 1160 |
| 1.5/0.4 | 8.4/2.1 | 20/6.7 | L1 | 584 | 681 | 778 | 972 | 1166 | 1360 | |||
| S | 96 | 144 | 192 | 288 | 384 | 480 | ||||||
| SHS-A 2t | 2 | 3 | 7.2 | 0.4 0.4/0.13 | 20 | L0 | 458 | 562 | 716 | 924 | 1132 | 1340 |
| 3/1 | 7.2/2.4 | 20/6.7 | L1 | 667 | 771 | 925 | 1133 | 1341 | 1549 | |||
| S | 104 | 156 | 209 | 313 | 417 | 521 | ||||||
| SHS-A 3.2t | 3.2 | 4.5 | 7 | 0.4 0.4/0.13 | 20 | L0 | 490 | 599 | 758 | 976 | 1194 | 1412 |
| 4.5/1.1 | 7/1.6 | 20/6.7 | L1 | 718 | 827 | 986 | 1204 | 1422 | 1640 | |||
| S | 110 | 164 | 219 | 328 | 437 | 546 | ||||||
| SHS-A 5t | 5 | 7.5 | 7.6 | 0.75 0.75/0.25 | 20 | L0 | 520 | 635 | 829 | 1058 | 1287 | 1516 |
| 7.5/2.0 | 7.6/1.8 | 20/6.7 | L1 | 792 | 907 | 1101 | 1330 | 1559 | 1788 | |||
| S | 118 | 177 | 229 | 344 | 458 | 572 | ||||||
| SHS-A 8t | 8 | 13 | 8 | 0.75 0.75/0.25 | 20 | L0 | 572 | 689 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 8/2 | 20/6.7 | L1 | 888 | 1005 | 1201 | 1434 | 1667 | 1900 | |||
| S | 117 | 175 | 233 | 350 | 466 | 583 | ||||||
| SHS-A 10t | 10 | 13 | 6.4 | 0.75 0.75/0.25 | 20 | L0 | 572 | 689 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 6.4/1.6 | 20/6.7 | L1 | 888 | 1005 | 1201 | 1434 | 1667 | 1900 | |||
| S | 117 | 175 | 233 | 350 | 466 | 583 | ||||||
JCYC-SHS-C 4/1 Electric Wire Rope Hoist
| Model | Capacity (t) | Lifting motor (kW) | Lifting speed (m/min) |
Travel motor (kW) | Travel speed (m/min) |
H Height of Lift | ||||
| 6m | 9m | 12m | 15m | |||||||
| SHS-C 3.2t | 3.2 | 3 | 3.6 | 0.4 0.4/0.13 | 20 | L0 | 716 | 924 | 1132 | 1340 |
| 3/1 | 3.6/1.2 | 20/6.7 | L1 | 925 | 1133 | 1341 | 1549 | |||
| S | 209 | 313 | 417 | 521 | ||||||
| SHS-C 6.3t | 6.3 | 4.5 | 3.5 | 0.75 0.75/0.25 | 20 | L0 | 758 | 976 | 1194 | 1412 |
| 4.5/1.1 | 3.5/0.8 | 20/6.7 | L1 | 986 | 1204 | 1422 | 1640 | |||
| S | 219 | 328 | 437 | 546 | ||||||
| SHS-C 10t | 10 | 7.5 | 3.8 | 0.75 0.75/0.25 | 20 | L0 | 829 | 1058 | 1287 | 1516 |
| 7.5/2.0 | 3.8/0.9 | 20/6.7 | L1 | 1101 | 1330 | 1559 | 1788 | |||
| S | 229 | 344 | 458 | 572 | ||||||
| SHS-C 16t | 16 | 13 | 4 | 0.75×2 0.75/0.25×2 | 20 | L0 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 4.0/1.0 | 20/6.7 | L1 | 1201 | 1434 | 1667 | 1900 | |||
| S | 233 | 350 | 466 | 583 | ||||||
| SHS-C 20t | 20 | 13 | 3.2 | 0.75×2 0.75/0.25×2 | 20 | L0 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 3.2/0.8 | 20/6.7 | L1 | 1201 | 1434 | 1667 | 1900 | |||
| S | 233 | 350 | 466 | 583 | ||||||
Questions before make quotation:
The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?
