Product Details:
Payment & Shipping Terms:
|
| Product Name: | Single Girder Double Girder Overhead Crane | Span: | As Per Your Request |
|---|---|---|---|
| Working Duty: | A5 | Capacity: | 1 Ton To 20 Ton |
| Lifting Height: | 6m 9m 12m Or As Per Request | Girder: | Single Girder/double |
| Voltage: | 220v-440v,50HZ/60HZ/3 P | ||
| Highlight: | 20T Workshop Overhead Crane,Double Girder Workshop Overhead Crane,Low Headroom Workshop Overhead Crane |
||
Low Headroom Single Girder Double Girder 1T-20T Workshop Overhead Crane
1. Brief Introduction:
European single beam overhead crane is a light duty overhead crane designed as European crane standards, eg: FEM, DIN. It has the advantage of smaller dimension, lighter self weight, higher lifting height and so on. Lifting capacity from 1 ton to 20 ton. European type single girder overhead crane has the minimum limiting distance from hook to the wall, lower headroom and more effective working space, etc. It will save more money on the initial construction investment, long term heating fee, air conditioning and other maintenance fee.
2. Technical Information:
| Mechanism item | unit | Result |
| Lifting capacity | ton | 1-20 ton |
| Lifting height | m | 1-35m |
| Span | m | 3-35m |
| Lifting speed | m/min | 0.8/5 |
| Working system | A4-A6 | |
| Power source | AC 50/60HZ 220V-480V 3P customized | |
| Working environment temperature | -25ºC~+40ºC |

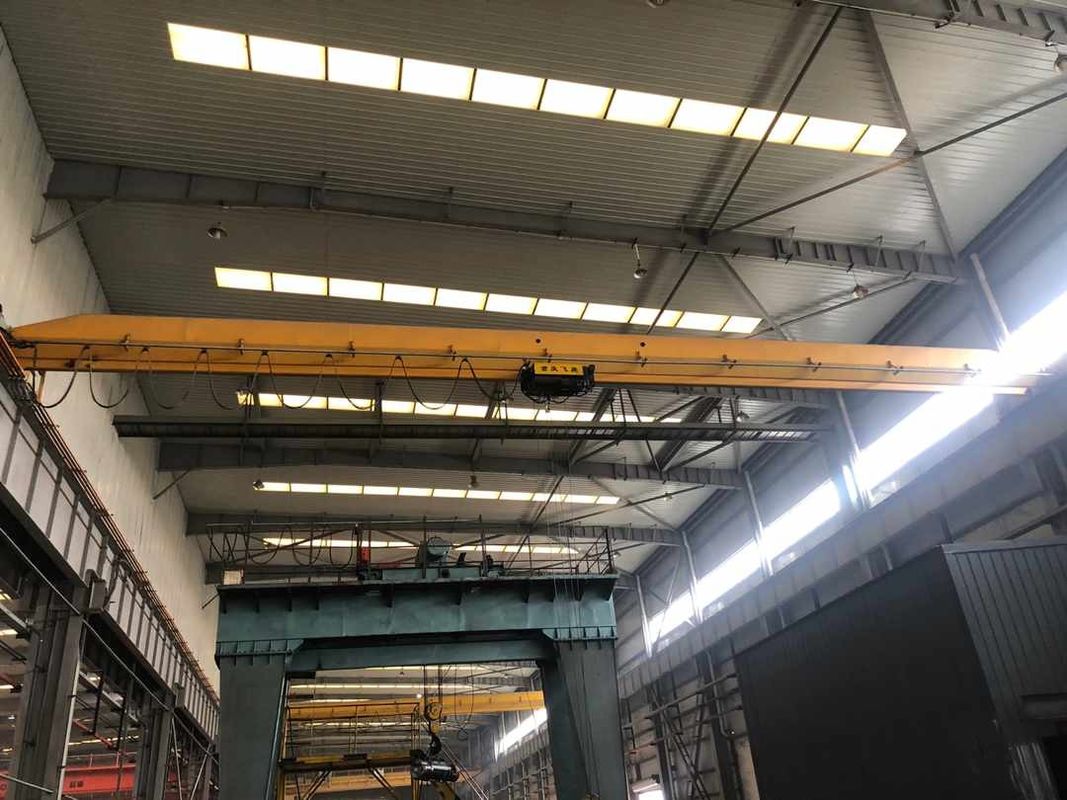

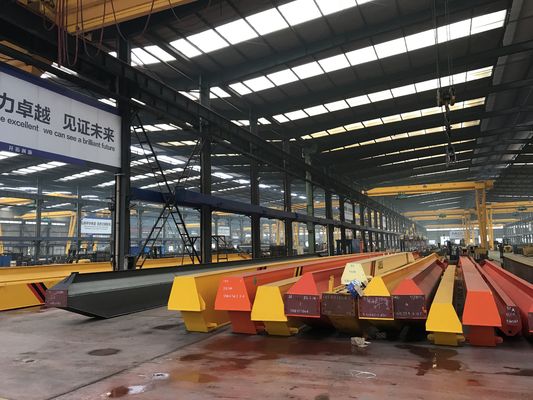

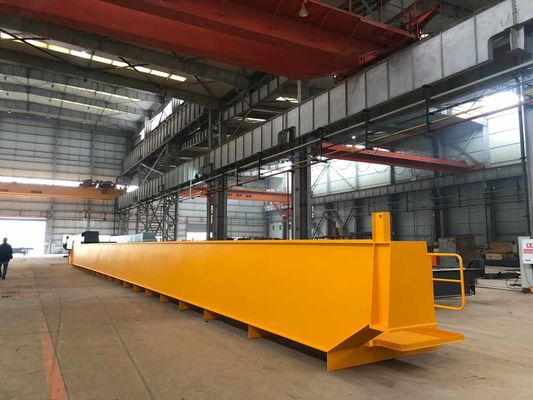

3. Product show:
4. Notice:
Please inform us the following details while you send the inquiry:
1. What is the lifting capacity?
2. What is the span?
3. What is the lifting height?(Lifting height=Distance from hook to ground)
4. What is the lifting speed?(Single speed or double speed)
5. What control mode do you need?(Pendant control or remote control or cabin)
6. What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz)
7. Is there any other special requirements?(Like need us to supply rails?how long? etc)
