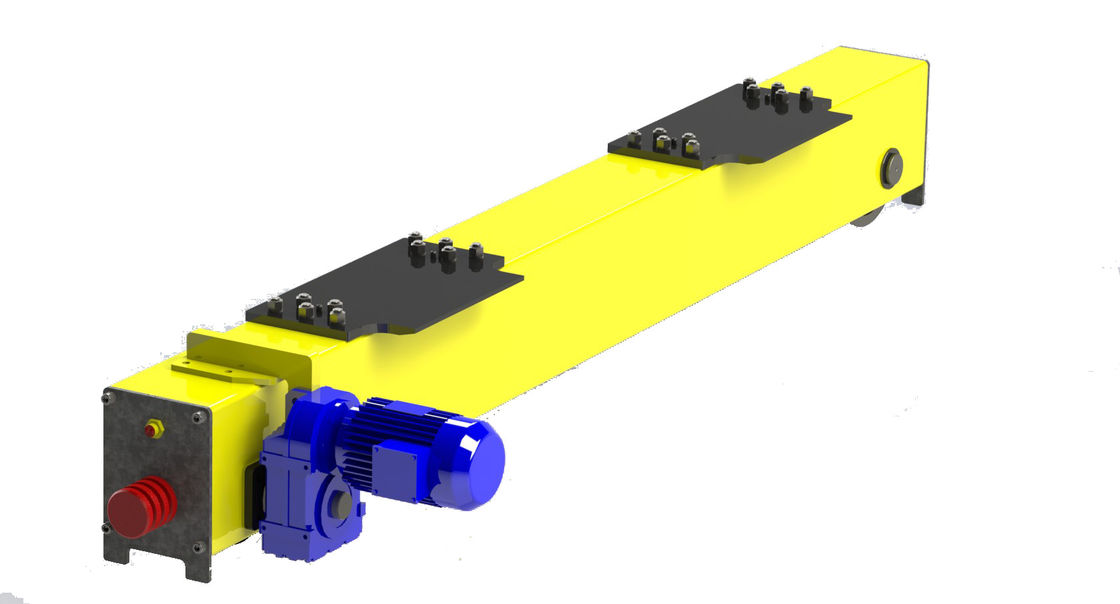

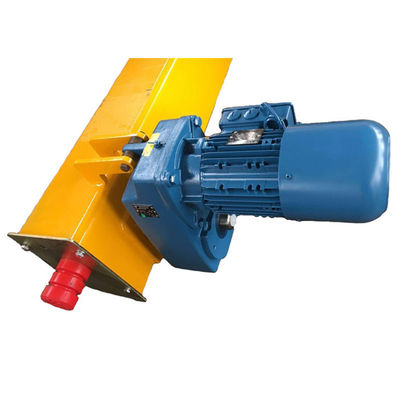

Hollow Shaft End Carriage 3 Ton 5 Ton 10 Ton Double Girder Overhead Crane End Truck End Carriage
Brief Introduction
The end beam is the driving unit for track walking, which can be directly connected with the main beam structure and adopts box beam design. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics - also for high loads.
Their strengths in detail:
• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures
Features:
Features of overhead crane end carriage:
1. Computer-designed box beam, the whole length of the web plate is cut by NC with accurate deflection;
2. Low clearance trolley structure with reasonable sized hook, thus it has wide application scope;
3. Arc or flat wheels, anti - friction bearings, honeycomb bumper, anti - derailment device;
Technical parameters
| Type | Crane spec. | Rectangular Steel tube |
Wheel size | Motor power (20m/min) |
Motor power (30m/min) |
S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
| EUS90-15 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 1500 | 1300 | 400 | 550 |
| EUS90-20 | 1.6t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS90-25 | 1.6t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS90-30 | 1.6t-22.5m | 3000 | 2800 | 400 | 550 | ||||
| EUS125-15 | 3.2t-7.5m | 150*200*8 | U125*60 | FA27-0.37KW | FA27-0.55KW | 1500 | 1300 | 400 | 550 |
| EUS125-20 | 3.2t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS125-25 | 3.2t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS125-30 | 3.2t-22.5m | 3000 | 2800 | 500 | 650 | ||||
| EUS125-35 | 3.2t-28.5m | 3500 | 3300 | 600 | 750 | ||||
| EUS160-15 | 6.3t-7.5m | 150*250*8 | U160*70 | FA37-0.55KW | FA37-0.75KW | 1500 | 1200 | 400 | 550 |
| EUS160-20 | 6.3t-11.5m | 2000 | 1700 | 400 | 550 | ||||
| EUS160-25 | 6.3t-16.5m | 2500 | 2200 | 400 | 550 | ||||
| EUS160-30 | 6.3t-22.5m | 3000 | 2700 | 500 | 650 | ||||
| EUS160-35 | 6.3t-28.5m | 3500 | 3200 | 600 | 750 | ||||
| EUS200-20 | 12.5t-11.5m | 200*250*8 | U200*70 | FA47-0.75KW | FA47-1.1KW | 2000 | 1700 | 500 | 650 |
| EUS200-25 | 12.5t-16.5m | 2500 | 2200 | 500 | 650 | ||||
| EUS200-30 | 12.5t-22.5m | FA47-1.1KW | 3000 | 2700 | 600 | 750 | |||
| EUS200-35 | 12.5t-28.5m | 3500 | 3200 | 700 | 850 | ||||
| EUS250-20 | 16t/20t-11.5m | 200*300*8 | U250*80 | FA57-1.1KW | FA57-1.5KW | 2000 | 1600 | 500 | 650 |
| EUS250-25 | 16t/20t-16.5m | 2500 | 2100 | 600 | 750 | ||||
| EUS250-30 | 16t/20t-22.5m | FA57-1.5KW | 3000 | 2600 | 700 | 850 | |||
| EUS250-35 | 16t/20t-28.5m | 3500 | 3100 | 700 | 850 |
