| Product Name: | Industrial Elevator Lifting Electric Wire Rope Winch | Brand: | JCYC/OEM |
|---|---|---|---|
| Application: | Material Lifting | Capacity: | 1 To 80T |
| Rope Length: | 100m To 500m Or At Your Request | Customised: | Yes |
| Highlight: | CE Electric Wire Rope Winch,Material Lifting Electric Wire Rope Winch |
||
Industrial Elevator Lifting Electric Wire Rope Winch
Overview:
JM/JK electric winch is a cost-effective option to lift and pull heavy objects and materials in building construction, bridge construction, road construction, industrial, mine and marine. It provides easy load control using a push-button control box or remote control (a control pendant or wireless remote control). These winches come in a range of styles and configurations to accommodate your unique applications. We can also custom design and build the winch to your special requirements.
Details:
JM/JK electric winch is a small and lightweight winch machine with simple structure. It mainly consists of electric motor, rope, drum, transmission system, brake and control system.
Electric motor – for general engineering winches, IP44 protected electric motor is used.
Rope – there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.
Drum – it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.
Transmission system – different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.
Brake – the winch can be delivered with motor brake, transmission brake and drum brake.
Control system – the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.
Technical Parameters:
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 |
45 |
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |

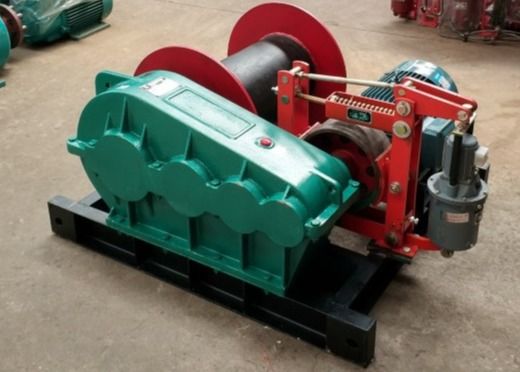

Product show:
