Product Details:
Payment & Shipping Terms:
|
| Product: | Top Running Single Girder Overhead Travelling Bridge Crane | Capacity: | 1 Ton - 30 Tons |
|---|---|---|---|
| Beam: | Single Beam | Crane: | Bridge Crane |
| Voltage: | Customized | Function: | Construction Lifting |
| Highlight: | Top Running Overhead Travelling Bridge Crane,Construction lifting Overhead Travelling Crane,ISO9001 Overhead Travelling Bridge Crane |
||

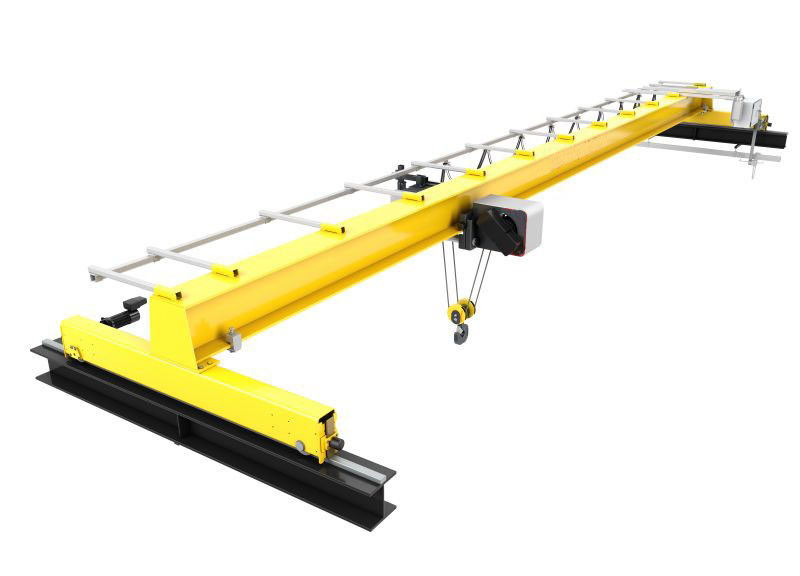

Top Running Single Girder Overhead Travelling Bridge Crane
1. Product Introduction:
Top Running Single Girder Cranes are designed to assist with a wide range of lifting tasks and moving operations which will contribute to your daily productivity and overall success. The Top Running Single Girder Crane is fabricated with rolled beams and channels or plate box beams, spans up to 40 meters, and has a 25 ton capacity on a single hoist and 30 ton capacity on a dual (2 x 15 ton) hoist proving to be a powerful and reliable solution for assorted industries while serving multiple applications in a diverse set of environments. The Crane can be equipped with close headroom (low headroom) hoist/trolley design to maximize available height (vertical clearance)
2. Advantages:
• Powerful and Reliable Solution
• Fabricated with Rolled Beams and Channels or Plate Box Beams
• Up to 3M-40M Span
• Up to 25 Ton Capacity on a Single Hoist
• Up to 30 ton Capacity on a Dual (2 x 15 ton) hoist
3. Parameter:
| Name | Specification |
| Rated Lifting Load | 1t, 2t, 3t, 5t, 10t, 16t, 20t, 30t |
| Span | 3m - 40m |
| Lifting Height | 6m – 30m |
| Class | A3 – A4 |
| Power | 380V 50Hz or at request |
|
Wheel Diameter (mm) |
300 |
| Power Source | 3p, A.C, 50Hz, 380V |
| Recommended Track | 18 - 38 |
|
Working Environment Temperature (°) |
-25° to 40° |
4. Photo:
5. Company Message:
OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
