Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1t 2t 3.2t 5t 8t 20t Single / Double / Triple Wheels Pulley Block | Capacity: | 0.5 Ton To 50 Ton |
|---|---|---|---|
| Application: | Transmission And Lifting Hoist | MOQ: | 1 Piece |
| Brand Name: | OEM | Timing Pulley Type: | Single/double/triple/multi Wheels |
| High Light: | Lifting Hoist Snatch Pulley Block,20t Snatch Pulley Block |
||

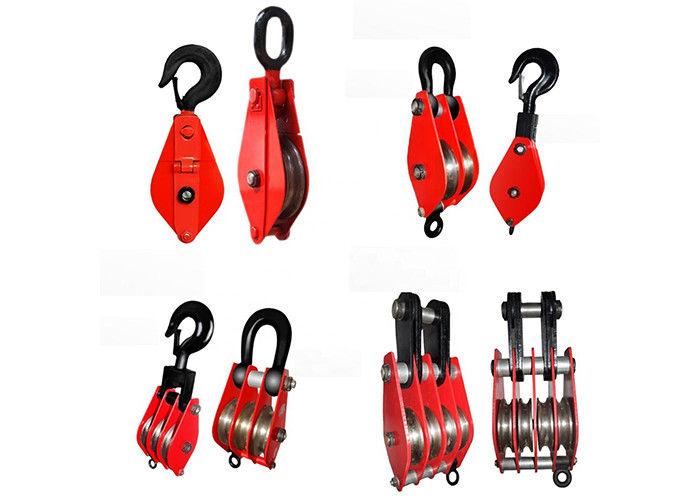

1t 2t 3.2t 5t 8t 20t Single / Double / Triple Wheels Pulley Block
Product Introduction
Snatch pulley block is an important lifting tool which is convenient and simple in structure, with single wheel, double wheel, three wheel, four wheel and more wheels. Max capacity 320t. Can assure you the competitive price on basis of good quality.
Product Characteristics
1. Simple structure, convenient.
2. Material:Steel
3. Certification: CE
4. Capacity: 0.5 T- 320 T
5. Special specification can be made according to your requirement.
6. Can be called pulley block, pulley, snatch block. With eye and hook two types.
7. Application: crane series lifting parts.
Product Parameters
Single Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK1-0.5 | 0.5 | 8 | 71 | 6.2-7.7 | 1.6 |
| HQGK1-1 | 1.0 | 16 | 85 | 7.7-11 | 3.1 |
| HQGK1-2 | 2.0 | 32 | 112 | 11-14 | 6.1 |
| HQGK1-3.2 | 3.2 | 51.2 | 132 | 12.5-15.5 | 10 |
| HQGK1-5 | 5 | 80 | 160 | 15.5-18.5 | 17 |
| HQGK1-8 | 8 | 128 | 210 | 20-23 | 33 |
| HQGK1-10 | 10 | 160 | 240 | 23-24.5 | 43 |
| HQGK1-16 | 16 | 224 | 315 | 28-31 | 100 |
| HQGK1-20 | 20 | 280 | 355 | 31-35 | 133 |
Double Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK2-1 | 1 | 16 | 71 | 6.2-7.7 | 3.3 |
| HQGK2-2 | 2 | 32 | 85 | 7.7-11 | 6.5 |
| HQGK2-3.2 | 3.2 | 51.2 | 112 | 11-14 | 11 |
| HQGK2-5 | 5 | 80 | 132 | 12.5-15.5 | 18.5 |
| HQGK2-8 | 8 | 128 | 160 | 15.5-18.5 | 40 |
| HQGK2-10 | 10 | 160 | 210 | 20-23 | 47 |
| HQGK2-16 | 16 | 224 | 240 | 23-24.5 | 75 |
| HQGK2-20 | 20 | 280 | 315 | 28-31 | 125 |
| HQGK2-32 | 32 | 448 | 355 | 31-35 | 200 |
Triple Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK3-3.2 | 3.2 | 51.2 | 85 | 7.7-11 | 10 |
| HQGK3-5 | 5 | 80 | 112 | 11-14 | 17.5 |
| HQGK3-8 | 8 | 128 | 132 | 12.5-15.5 | 33 |
| HQGK3-10 | 10 | 160 | 160 | 15.5-18.5 | 53 |
| HQGK3-16 | 16 | 224 | 190 | 17-20 | 70 |
| HQGK3-20 | 20 | 280 | 210 | 20-23 | 125 |
| HQGK3-32 | 32 | 448 | 280 | 26-28 | 140 |
| HQGK3-50 | 50 | 700 | 355 | 31-35 | 300 |
