Product Details:
Payment & Shipping Terms:
|
| Product: | Double Girder Electric Hoist | Feature: | Double Beam |
|---|---|---|---|
| Sling Type: | Wire Rope | Max. Capacity: | 50t |
| Lifting Height: | 6m~18m | ISO Class: | M4, M5 |
| Highlight: | electric lifting hoist,stainless steel wire rope hoist |
||
Heavy Load Double Girder Micro Electric Rope Hoist 6m ~ 18m Lifting Height
Product Description:
50t Heavy Load Double Girder Electric Wire Rope Hoist for Material Lifting
Porduct Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Technical Parameters:
| Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Lifting Motor(kw) | Travelling Speed(m/min) | Travelling Motor(kw) | Lifting System(FEM/ISO) | |
| 3.2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.42 | 5/20 | 0.25*2 | 2M | M5 |
| 5 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37*2 | 2M | M5 |
| 6.3 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37*2 | 2M | M5 |
| 8 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37*2 | 2M | M5 |
| 10 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.37*2 | 2M | M5 |
| 12.5 | 6/9/12/15/18 | 5/0.8 | 12.5/2 | 5/20 | 0.55*2 | 1AM | M4 |
| 16 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55*2 | 2M | M5 |
| 20 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.55*2 | 1AM | M4 |
| 25 | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 0.75*2 | 3M | M6 |
| 32 | 6/9/12/15/18 | 3.3/0.8 | 20/5 | 5/20 | 1.1*2 | 2M | M5 |
| 40 | 6/9/12/15/18 | 0-4 | 38 | 5/20 | 1.5*2 | 1AM | M4 |
| 50 | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5*2 | 2M | M5 |
| 50 | 6/9/12/15/18 | 0-3 | 38 | 5/20 | 1.5*2 | 2M | M5 |

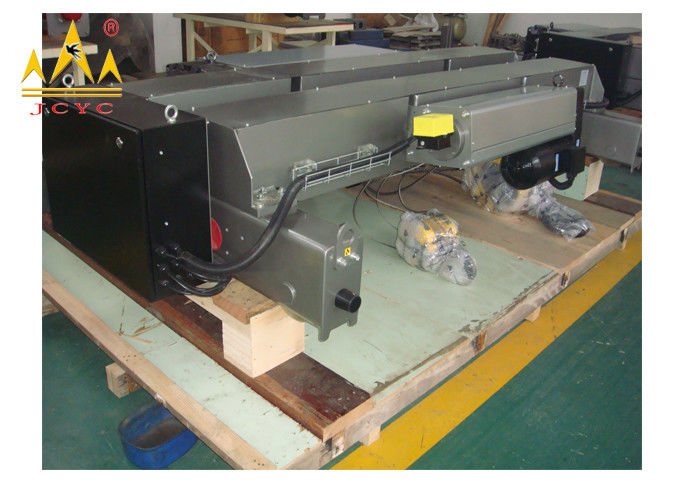

Photo:
Warm Tips:
| Warm tips Before Make A Order | We need your confirmation about below informations: | |
|
1. Trade term, for example, EXW, FOB or CIF? |
