| Product Name: | G80 Lifting Chain Alloy Steel Chain With Cheap Price | Material: | Alloy Steel |
|---|---|---|---|
| Normal Dia.: | 6-42mm | Working Load: | 1-55ton |
| Color: | Black | Usage: | Lifting Materials |
| Highlight: | grade 80 lifting chain,grade 80 alloy chain |
||

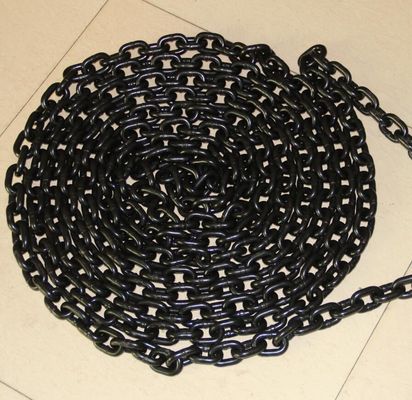

Alloy Steel G80 Lifting Chain 1 - 55ton Load Black For Lifting Materials
Chain Features
1.Strict production process management.
2.The advanced heart processing craft.
3.Each working procedure carries out a strict size check.
4.With high quality material 20Mn2.
5.All pass the 4.5 times breaking force test.
6.Could reach to the EN818-7 standard.
Chain specification
| Spec.(mm) | weight(kg)/m | Working load(T) |
| Φ6*18 | 0.79 | 1.2 |
| Φ8*24 | 1.38 | 2.1 |
| Φ10*30 | 2.2 | 3.2 |
| Φ12*36 | 3.1 | 4.6 |
| Φ13*39 | 3.8 | 5 |
| Φ14*42 | 4.13 | 6.3 |
| Φ16*48 | 5.63 | 7 |
| Φ18*54 | 6.85 | 9 |
| Φ20*60 | 8.6 | 10 |
| Φ22*66 | 10.2 | 12 |
| Φ25*92 | 13.7 | 15 |
| Φ28*98 | 16.5 | 18 |
| Φ30*108 | 18 | 21 |
| Φ32*126 | 22.7 | 25 |
| Φ35*137 | 28.5 | 28 |
| Φ40*160 | 33 | 36 |
| Φ50*200 | 50 | 41 |
Product show
