| Crane: | Double Girder | Duty Group: | ISO M3 - ISO M5 |
|---|---|---|---|
| Type: | Wire Rope | Capacity: | 20t |
| Lifting Height: | 18m | Power Supply: | 220 - 600V, 50 - 60Hz |
| Highlight: | electric lifting hoist,stainless steel wire rope hoist |
||
Product Details:

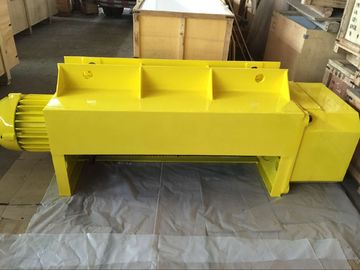

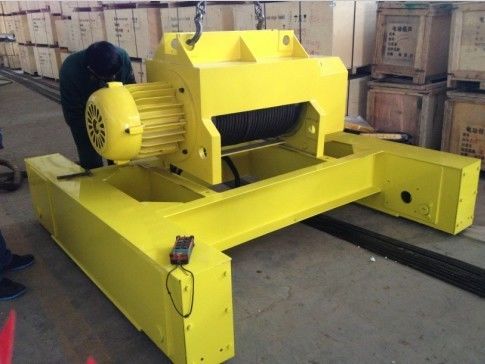

Double Girder Electric Wire Rope Hoist Chinese model Heavy Tons For Factory
Features and advantages:
1. CD1/MD1 model can be used as a winch after slight modification.
2. Choose single or double lifting speed, even multi-speed with frequency inverters.
3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.
6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.
7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.
8. CD1 has only a normal speed which can satisfy Normal application.
9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | I Beam Track Type | Working Duty | (H)Lifting Height | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | I Beam Track Type | Working Duty | (H)Lifting Height | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| MD1-0.25 | 0.25 | 3-9 | 8/0.8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 6-12 | 8/0.8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.2/0.8 | 1380 | 0.2 | 1380 | ||
| MD1-1 | 1 | 6-30 | 8/0.8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 0.2/1.5 | 1380 | 0.2 | 1380 | ||
| MD1-2 | 2 | 6-30 | 8/0.8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 0.4/3 | 1380 | 0.4 | 1380 | ||
| MD1-3 | 3 | 6-30 | 8/0.8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 0.4/4.5 | 1380 | 0.4 | 1380 | ||
| MD1-5 | 5 | 6-30 | 8/0.8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 0.8/7.5 | 1380 | 0.8 | 1380 | ||
| MD1-10 | 10 | 6-30 | 7/0.7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 | ||
| MD1-16 | 16 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 15 | 45a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 | ||
| MD1-20 | 20 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 20 | 50a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 | ||
