| Maximum Lifting Weight:: | 1200kg | Standard Lifting Height: | 12 And 6 M |
|---|---|---|---|
| Lift Speed: | 5/10 M/min And 4/8 M/min | Sling Type: | Wire Rope |
| Capacity: | 200kg -1000kg | Power Supply: | 220/230/240V |
| Method Of Use: | Single-hook & Double-hook | ||
| Highlight: | electric lifting hoist,stainless steel wire rope hoist |
||

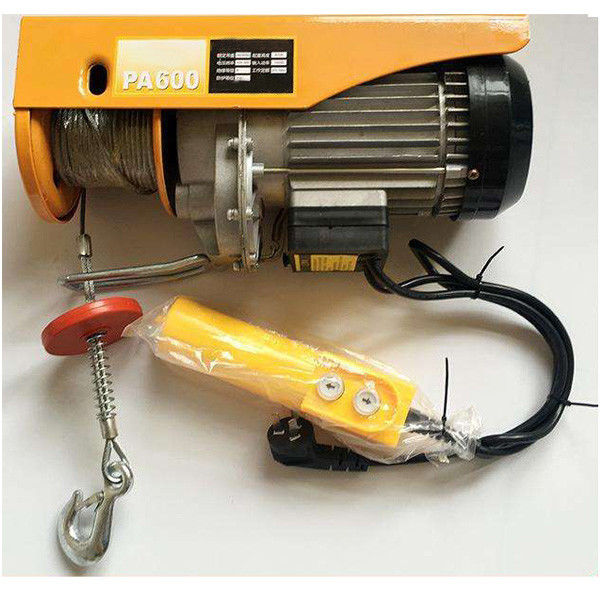

1000kg Electric Wire Rope Hoist With Small Button Control Pa200 Pa500 Pa1000
Product Introduction:
Electric Wire Rope Hoist is kind of light and small lifting equipment, which is easy and convenient for operation. It consists of electromotor, transmission mechanism and winding drum or chain wheel. and it can be divided into steel wire rope and loop chain electric cable hoists. The electric cable hoist is mainly used in industrial and mining enterprises, or some places that need lifting goods, such as warehouse, wharf, etc. In general, the lifting capacity of our electric hoist ranges from 100kg to 1000kg,and the lifting height ranges from 3m to 30m, mini electric hoist.
Product specification:
| Model | Method of Use | Rated Volt (v) |
Input Power (w) |
Rated Capacity (kg) |
Lifting Speed (m/min) |
Lifting Height (m) |
Qty/CTN PCS |
Packing Size (cm) |
G.W/N.W (kg) |
| PA200B | Single-Hook | AC 220/230V 50/60Hz |
480 | 100 | 10 | 12 | 2 | 38×32×25 | 22.5/22 |
| Double-Hook | 200 | 5 | 6 | ||||||
| PA250B | Single-Hook | 510 | 125 | 10 | 12 | 23/22 | |||
| Double-Hook | 250 | 5 | 6 | ||||||
| PA300B | Single-Hook | 600 | 150 | 10 | 12 | 23.5/23 | |||
| Double-Hook | 300 | 5 | 6 | ||||||
| PA400B | Single-Hook | 950 | 200 | 10 | 12 | 45×34×27 | 33/32 | ||
| Double-Hook | 400 | 5 | 6 | ||||||
| PA500B | Single-Hook | 1020 | 250 | 10 | 12 | 33.5/32.5 | |||
| Double-Hook | 500 | 5 | 6 | ||||||
| PA600B | Single-Hook | 1200 | 300 | 10 | 12 | 35/34 | |||
| Double-Hook | 600 | 5 | 6 | ||||||
| PA800B | Single-Hook | 1300 | 400 | 8 | 12 | 38/37 | |||
| Double-Hook | 800 | 4 | 6 | ||||||
| PA1000B | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 54×25×32 | 32/31 | |
| Double-Hook | 1000 | 4 | 6 |
Product show:
