Product Details:
Payment & Shipping Terms:
|
| Name: | Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control | Color: | Customized |
|---|---|---|---|
| Capcity: | 0.25t-50t | Lifting Height: | 3m-24m |
| Voltage: | 220v-440v,50HZ/60HZ | Usage: | Lifting Goods |
| Highlight: | electric lifting hoist,stainless steel wire rope hoist |
||

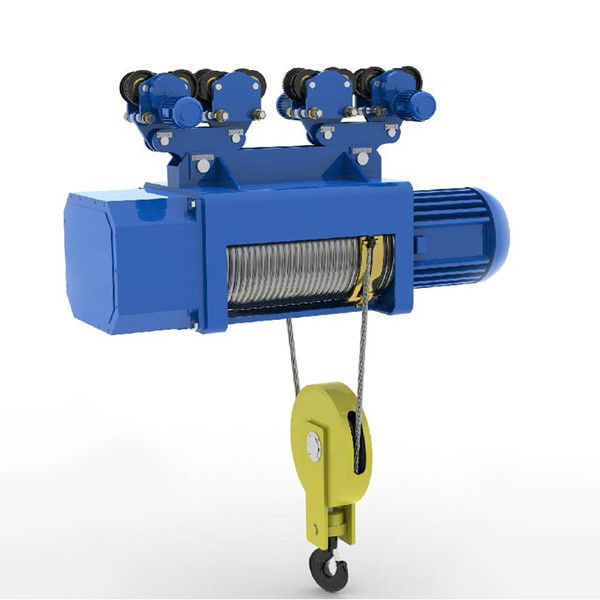

Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control
Product Description:
Electric hoist is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The new type hc light small wireless remote control electric hoist can also work by fixing to a section of I-beam. It is a light duty designed.
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| HC-A0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ, 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ, 3 Phase |
| HC-A0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| HC-A1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| HC-A2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| HC-A3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| HC-A5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| HC-A10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| HC-A16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| HC-A20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| HC-B16 | 16 | 9-48 | 3.5(3.5/0.35) | 20 | 6*19 | 17.5 | 50a-63c | M3 | 13(13/1.5) | 920(1400) | 220-440V 50/60HZ, 3 Phase | 0.8*2 | 1380 | 220-440V 50/60HZ, 3 Phase |
| HC-B20 | 20 | 9-24 | 3.5/0.3(4/0.4) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B25 | 25 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B32 | 32 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B50 | 50 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B80 | 80 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
Safety Features:
Safety is the most important issue for new type hc light small wireless remote control electric hoist. To ensure the safety, we equip the following safety devices:
1. eight overload protection device
2. Lifting height limit device
3. Voltage lower protection function
4. Phase sequence protection function
5. Emergency stop function
6. Rain cover for outside hoist, driving units, electrical cubicle
7. Warming indicator, flashing lights and warming sound
8. Wireless infra-detector for anti-collusion
