Product Details:
Payment & Shipping Terms:
|
| Product Name: | Suspension Crane End Carriage Stable And Portable European Style | Crane: | 1t/2t-7.5m |
|---|---|---|---|
| Wheel/Motor: | 90*8/0.3KW*2 | Traveling Speed: | 20 M/min |
| Feature: | Stable, Simple And Protable | Steel: | Hot-rolled Steel |
| Highlight: | crane carriage,end carriage overhead crane |
||

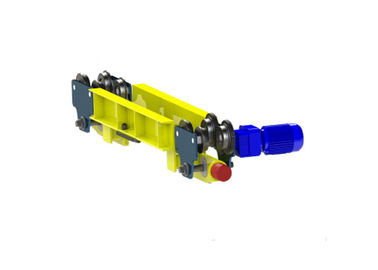

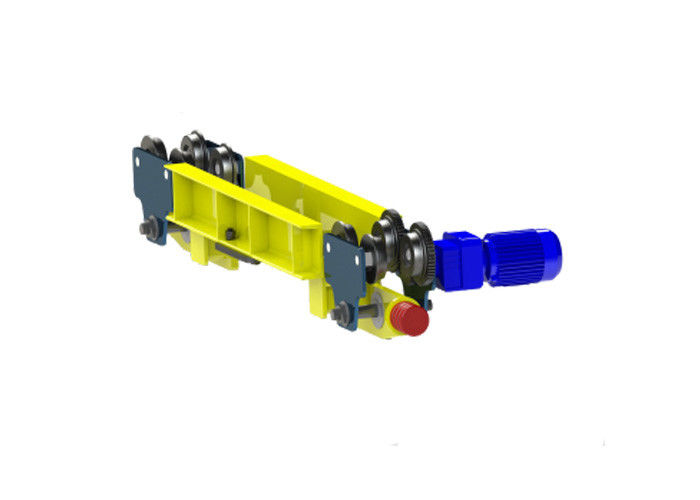

Stable and Portable European Style End Carriage of Suspension Crane
Main Features:
Using RS series Motor, 8 wheel loads are more stable. simple and portable hot-rolled steel, trolley assembly connecting rod univeral bearing, effectively regulate the orbit error, is the perfect partner of high-quality suspension crane.
| Model | Crane | Wheel/Motor | Traveling speed (m/min) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
| EUR2-12 | 1t/2t-7.5m | 90*8/0.3KW*2 | 20 | 1700 | 1200 | 260 | 340 | 110-130 |
| EUR2-15 | 1t/2t-11.5m | 90*8/0.3KW*2 | 20 | 2000 | 1500 | 260 | 340 | 110-130 |
| EUR2-18 | 1t/2t-16.5m | 90*8/0.3KW*2 | 20 | 2300 | 1800 | 260 | 340 | 110-130 |
| EUR5-15 | 3t/5t-7.5m | 120*8/0.4KW*2 | 20 | 2000 | 1500 | 360 | 580 | 122-142 |
| EUR5-18 | 3t/5t-11.5m | 120*8/0.4KW*2 | 20 | 2300 | 1800 | 360 | 580 | 122-142 |
| EUR5-22 | 3t/5t-16.5m | 120*8/0.4KW*2 | 20 | 2700 | 2200 | 360 | 580 | 122-142 |
Whole set end carriage includes wheels, gear motor, connect plat bolts and rubber buffers.
Quotation tips: Please tell us capacity and span of the crane, the voltage and the more information the more accurate price.
