Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow Or Customize Color | Material: | Steel |
|---|---|---|---|
| Paint: | Painting | Grade: | Explosion-proof |
| Warranty: | 12 Months | Function: | Explosion Proof |
| Type: | Electric Wire Rope Hoist | Capacity: | 0.5 Ton To 16 Tons |
| Highlight: | electric lifting hoist,stainless steel wire rope hoist |
||
1. Product Profile:
BCD Model, Explosion-proof Electric Wire Rope Hoist. Completely solved sparkers problem and widely used in industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is Three phase AC 380 V 50 Hz, customization is ok.
2. Description:
2.1. Insulation Grade: F. Usage: Lifting, fixing, binding, traction, etc.
2.2. High quality and wide adaptation.
2.3. Excellent performance.
2.4. 1 year warranty
2.5. Sample, OEM and ODM are all ok.
3. Advantages:
3.1. The main parts of it adopt high quality steel product to ensure durability.
3.2. Special specifications and marks can be made according to customers' requirements.
3.3. Adapts to environment that has explosive gas formed by inflammable gas, steam and sir of which explosion proof grade is less than B or C grade and ignition grade is more than T4 (135℃) group.
3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
4. Parameter:
| Model | Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Travelling Speed(m/min) | Wire Rope Spec. | Dia. Of Wire Rope(mm) | Lifting Motor | Power Supply | |||
| Type | Power(kw) | R.P.M(r/min) | Current(A) | ||||||||
| BCD0.5 | 0.5 | 6-12 | 8(0.8/8) | 20/30 | 6*37 | 4.8 | BZD121-4 | 0.8(0.2/0.8) | 1380 | 2.4(0.72/2.4) | AC380V 50HZ, 3 P |
| BZDS10.2/0.8 | |||||||||||
| BCD1 | 1 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 7.4 | BZD122-4 | 1.5(0.2/1.5) | 1380 | 4.3(0.72/4.3) | |
| BZDS10.2/1.5 | |||||||||||
| BCD2 | 2 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 11 | BZD131-4 | 3(0.4/3) | 1380 | 7.6(1.25/7) | |
| BZDS10.4/3 | |||||||||||
| BCD3 | 3 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 13 | BZD132-4 | 4.5(0.4/4.5) | 1380 | 11(2.25/11) | |
| BZDS10.4/4.5 | |||||||||||
| BCD5 | 5 | 6-30 | 8(0.8/8) | 20/30 | 6*37 | 15 | BZD141-4 | 7.5(0.8/7.5) | 1400 | 18(2.4/18) | |
| BZDS10.8/7.5 | |||||||||||
| BCD10 | 10 | 9-30 | 7(0.7/7) | 20/30 | 6*37 | 15 | BZD151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | |
| BZDS11.5/13 | |||||||||||
| BCD16 | 16 | 9-30 | 3.5(0.35/3.5) | 18 | 6*37 | 17.5 | BZD151-4 | 13(1.5/13) | 1400 | 30(5.2/30) | |

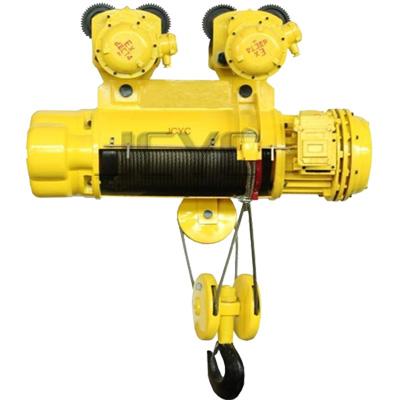

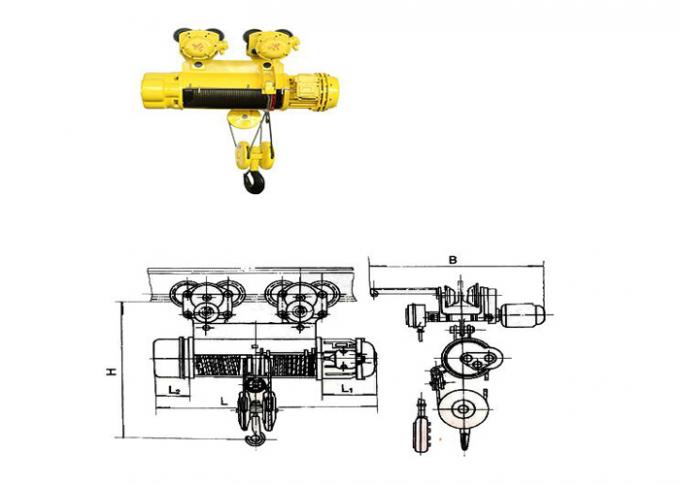

5. Photo:
6. Company Message:
OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
